Acrylic Album Template - How to Cut the Album - Part 3

Ready to cut

Before we get started, just another reminder. Please, please, please... follow all safety guidelines provided in the users manual for all power tools. I am not responsible if you cause yourself, or anyone else, bodily harm due to negligence misuse of any equipment.

Install a skip tooth blade on your scroll saw. If you don't have access to a skip tooth blade then look for a blade with small teeth, placed close together. The TPI should be in the 15 to 18.5 range. Anything under 15 TPI can chip the acrylic and will be very difficult to cut with.

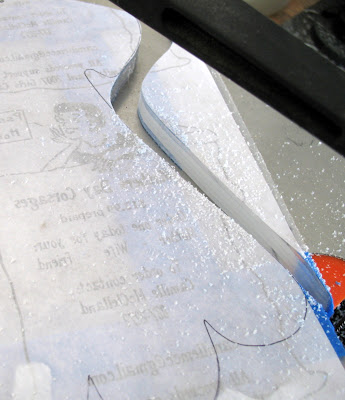

Start your cut on an easy straight line. Turn on the saw, and gently press the acrylic stack to the blade giving the blade time to work it's way into the acrylic. Once the blade has caught hold, work your way along the design following your line. Turn the acrylic so you're always applying pressure towards the blade teeth. If you apply pressure pushing the blade from the side it will cause friction and begin to melt the acrylic.

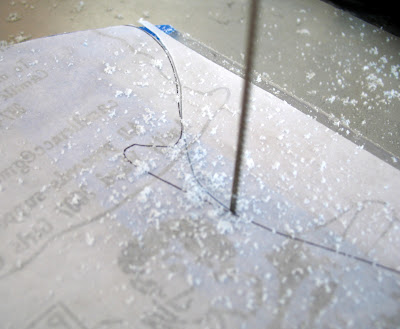

As you cut you want to be aware of the acrylic sawdust. The saw dust is a good sign that you're operating the saw correctly. If there is no saw dust, and it starts to feel the blade wants to lift the acrylic, it means your blade is too hot and you're melting the acrylic. Keep the saw running and back the blade out of the design. The blade and the acrylic will need to cool off. The blade can cool fairly quickly, but the acrylic can take 15 minutes or more. I simply rotate my design and begin cutting again in a different location at least one inch from the hot spot.


Work your way around your design avoiding any tight curves until you have rough cut the entire piece. Tight curves tend to get hot very easily so it's best to eliminate the extra acrylic around the tight curve first.

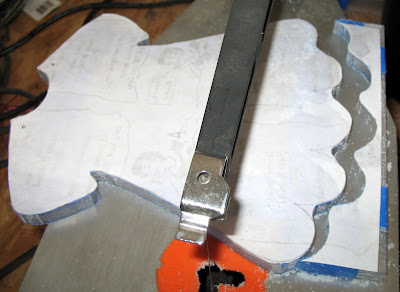

As you cut, the blade will create a weak bond between sheets of acrylic and should hold them together. However it's very important if the sheets are shifting at all that you apply more painters tape around the areas you are not cutting on to hold the acrylic sheets firmly together. If the sheets are shifting against each other it will create friction against the blade and melt the acrylic very quickly. ... and it will keep happening over and over again, until you've got hot melted spots all over the entire album.

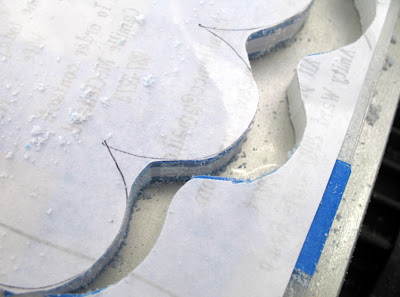

Next go back and work on the more difficult cuts. For tight curves, cut from one direction to the middle of the tight curve, back the blade out, and then cut from the other direction to complete the cut in the middle of the tightest spot. This really helps to eliminate melting the acrylic.

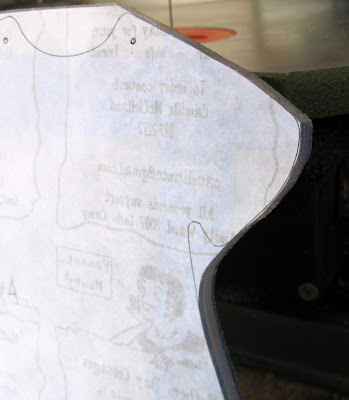

For cuts that come to a point, the same principle applies, start from one side. As you approach the apex of the cut apply very little pressure to the acrylic and don't overshoot your stopping point. As you complete the cut from the other directions make sure you end at exactly the same point. If you cut past the apex it will be very visible on your finished page.

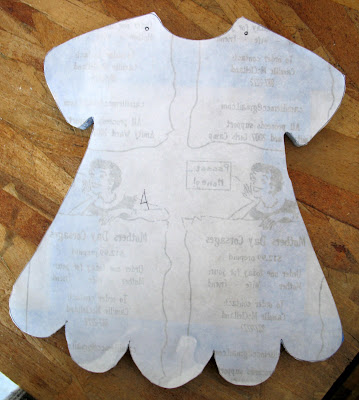

On my next post I'll go over removing any melted acrylic spots and finishing the edges of the album.

Acrylic Album Template - How To Buy Your Acrylic and Preparing to Cut - Part 2

Now that you have your design is ready to go, it's time to:

Prepare to cut

There is a variety of options when it comes to the type of acrylic you decide to use. I usually purchase all of my acrylic at Home Depot. In my area, it is the best price and the most readily available source. I've looked at Lowes as well, but the thickness of the acrylic they carry is different that Home depot, and I find the selection to be either too thin or to thick.

Both stores carry two brands. The Lexan brand is higher quality acrylic. It can bend without cracking, and you can use your Crop-a-dile to punch holes in it with good success. It's also quite a bit more expensive than the secondary brand. Because it is more manipulative, Lexan might be a good option for a first time cutter. Especially if you do not have a drill press. I only buy the secondary brand.

Thickness varies in the acrylic. I prefer to use the .093 thickness, which is industry standard thickness for acrylic scrapbooking.

The acrylic can be purchased in sheets in a variety of sizes. If you have a table saw you can buy larger sheets, at a better price point, and cut them down to size. If you don't have a table saw, or don't feel comfortable using a table saw, then buy the smallest sized sheets which will accommodate the size of your design.

Tips on cutting down large acrylic sheets:

Before attempting to cut, please click here and read my disclaimer on following the safety guidelines of all power tools.

Don't try to start with the 48"x36" sheets for your first cut. Cutting acrylic is a lot different than cutting wood, and until you've developed experience it's best to start with smaller sheets. Nothing larger than 24 inches.

To determine how small to cut the sheets, measure the widest and longest parts of your design and add a 1/2 inch.

Use the table saw fence to ensure your cut is straight. While cutting keep the edge of the acrylic against the fence, and make sure the acrylic sheet stays flush against the top of saw table. The acrylic has a tendency to ride up the blade, which causes the table saw blade to rip out large chips from the acrylic. Not only will it ruin your acrylic, but it can cause injuries. Keep the acrylic pressed down against the table, and flush against the fence.

The end result should be 4-6 rough cut square or rectangular pages exactly the same size, slightly larger than the design template.


Now that you have all of your acrylic cut to size, decide how many pages the album will be. The scroll saw works much better when cutting more than one sheet of acrylic at at time, and when cutting the sheets together the end result is completely uniform pages. I always try to cut the entire album at one time- usually between 3-6 pages. For your first album, you may want to add one extra sheet. My first album started out with 6 pieces of acrylic and ended in 4 usable pages, due to cracks and errors from inexperience.

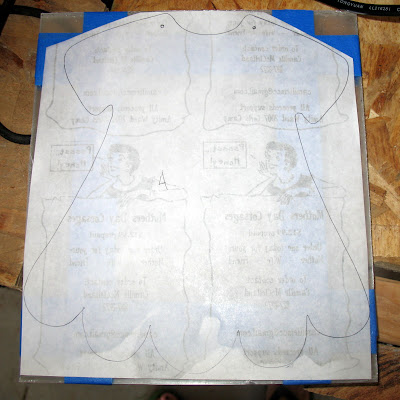

Stack the acrylic sheets and tape tightly together with painters masking tape. as shown.

The tape should go all the way around the stack about 2 times. Once at the top, once at the bottom, and once on each side. It's very important that the acrylic pieces do not shift while cutting on the scroll saw or it can bind up the blade and cause the acrylic to melt.

Once the acrylic sheets are secure, glue your design to the top of the stack. First make sure the surface of the acrylic is free from acrylic saw dust, then use Fabri-tac glue or spray glue to adhere the design to the front of the acrylic stack. Your paper design doesn't need to be cut out, but should be trimmed so it fits on the acrylic.

Now you're ready to start cutting, which I will cover in the next post.

Acrylic Album Templates - How to Guide for Creating an Album Template. Part 1.

I designed and cut my first shaped album in September of 2007. It was this lovely snowflake album. I've been hooked ever since.

In October 2007, I designed the following house shaped album, decorated it, and sold it on ebay. Approximately one month later another acrylic manufacturer used my design without my permission and began to mass market the album. If you're a scrapbooker it might look familiar.

I was so disappointed! It really challenged my faith in humanity. As it turns out it's going to cost me $THOUSANDS$ to pursue legal action, and while there is no question I would win in a legal dispute it's just not worth my effort or attention.

So instead I'm going the shareware route and I plan to make my Acrylic House Album Template available for free personal use. (I'll post that later.)


The finished album...

For now, I'm going to post detailed step by step instructions for exactly how to cut your own shaped albums with standard garage tools.

Today I'm starting with Designing your template

(Disclaimer and legal mumbo jumbo)
Through out this guide I am going to be demonstrating with my dress album template. If you love this album, I'm flattered, but PLEASE do not copy the album. It is my design, and is copyright Camille McClelland 2008. All of my designs shown on my blog, on eBay and in various other online photo albums are copyright protected and may not be used without my written permission. Please feel free to design your own dress album, just don't make it exactly the same as mine... I do scrap for hire, so if you see something you really must have please leave me a comment with your email and I will be in touch.




I'd like to take a minute to discuss which tools we will be using to create the album. If you do not have access to a majority of these tools you may not be able to complete a shaped acrylic album.

Also, (Here's the disclaimer part) I am not responsible for any injuries incurred while working with acrylic using my guide as reference. Always follow the safety guidelines on all equipment and tools. Use safety goggles and a breathing mask when cutting. The acrylic can become hot, the edges can be very sharp, the acrylic saw dust can get in your eyes and down your throat. Act responsibly, and if under 18 years of age, get your parents permission.



Tools needed:
Table saw (Optional)
Scroll Saw (a band saw may work, but I've never tried it)
Skip tool scroll saw blades (Other blades do work, but not nearly as well)
Dremel or similar hand held rotary tool
Drill press (a standard drill will work, but you may have more mistakes)
Metal files (optional)
Sandpaper - 200 grit or higher
Power Sander - Optional




Designing your first template

For your first album try to create a design with simple lines, and limited tight curves. It should be large enough to accommodate the size of your pictures. I always prefer a subjective, asymmetrical shape, rather than a symmetrical standard shape. For example cutting a perfect circle--and getting it perfect-- is much more difficult than cutting the shape of an asymmetrical mushroom.

Draw your finished design out on paper in actual size. I prefer to use graph paper but solid white paper works just as well. Consider hole placement for the binder rings or ribbon and mark them on the paper. Keep in mind the album needs to open and close. Make sure the placement of the binder ring holes will not limit your ability to open and close the book.

Next, make a second copy of the design. I like to keep a master template of all my designs so if I need to recreate the album I don't need to worry about redrawing it, or marking up a finished album. Make sure the outline is dark and very easily visible.

Now you're ready to get your acrylic and prepare to cut.

Which will be the next post...
